| Place of Origin | China |
| 브랜드 이름 | Syscode |
| 인증 | CE |
| Model Number | CO2 |

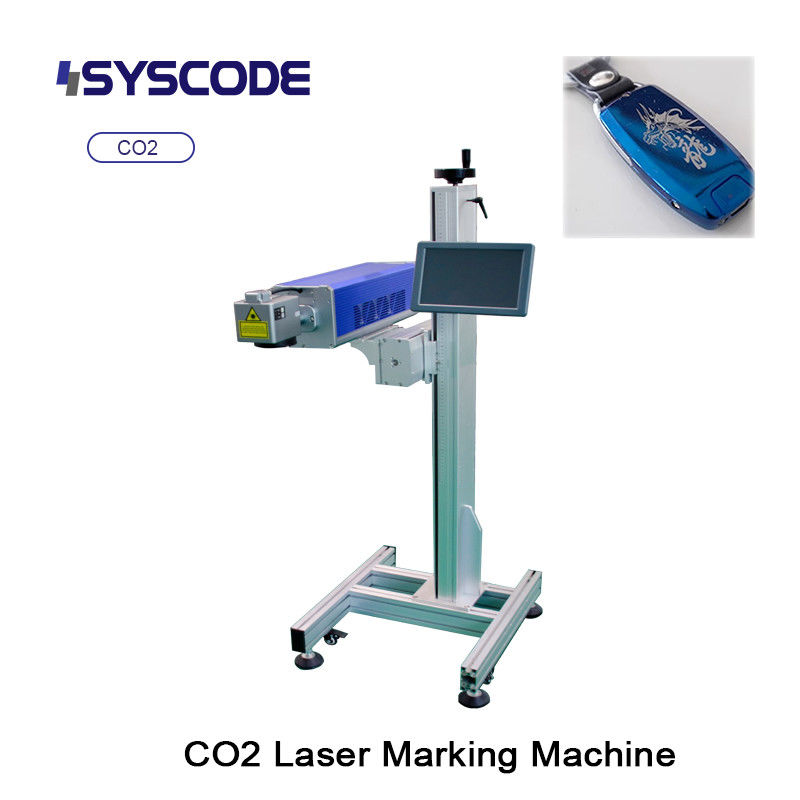

Touchscreen Laser Marker - Linux OS, Power Failure Protection, 90x90mm Work Area
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
Product Overview
High-speed marking: Supports production line speeds up to 280m/min (material dependent)
Precision positioning: Dual red-light focusing system with 0.01mm repeat positioning accuracy
Wide material compatibility: Perfect for processing PET, acrylic, glass, plastic, leather and more
10-inch touchscreen: Intuitive Linux/Windows operating interface
Flexible data input: Multiple transmission options via USB/SD card/communication interfaces
Power failure protection: Industry-leading data protection against unexpected power loss
Premium components: Features Dawai laser, Golden Scanner galvanometer and other renowned brand parts
Stable cooling system: Water cooling maintains optimal 25℃ operating temperature
360° rotatable lens: Scanner head rotates freely for versatile installation
| Category | Specification |
|---|---|
| Laser Power | 40W CO2 Laser |
| Wavelength | 10.6μm |
| Marking Area | ≤500×500mm (standard 90×90mm) |
| Minimum Line Width | 0.03mm |
| Power Requirement | AC220V,50-60Hz |
| Total Power | 1200W |
| Operating Temperature | 25℃ (water cooled) |
| Machine Weight | 58kg |
| Dimensions | 656×568×1365mm |
Our intelligent laser marking machine is widely used in:
Food & Beverage: Date/batch coding on water bottles, oil containers, alcohol packaging
Pharmaceutical: Traceability codes and expiry dates on medicine packaging
Electronics: Permanent marking on PCBs and electronic components
Cosmetics: Identification on cosmetic bottles and detergent packaging
Industrial Products: Brand marking on rubber, leather, bamboo and wood products
Q: What file formats does this laser marker support?
A: Supports multiple formats including BMP/DXF/JPEG/PLT, with direct vector file import capability.
Q: Does the equipment support variable data marking?
A: Yes, it automatically marks variable text like serial numbers, time, date, counters, and shifts.
Q: What types of barcodes and QR codes can it process?
A: Supports Code39/93/128, EAN-13 barcodes and QRCode, Data Matrix QR codes.
Q: How to quickly focus when changing marked products?
A: The dual red-light focusing system enables fast and precise focal positioning.
Q: How is data security during power outages?
A: Advanced data protection technology ensures no user data loss during unexpected power failures.
Q: Is customized function development supported?
A: We offer flexible R&D solutions with customizable functions based on client requirements.
Full aluminum body - Lightweight (only 58kg) yet durable for easy production line deployment
Industrial-grade motherboard - Highly integrated design ensures long-term stable operation
Environmentally friendly - Marking process produces no chemical pollutants
Multi-functional marking - Supports text, graphics, barcodes, photos and more
Global voltage compatibility - AC220V,50-60Hz design suitable for international markets
This intelligent laser marking machine is the optimal solution to enhance your product identification efficiency and quality, perfect for both mass production and small batch customization needs. Contact us for more product details and technical support!
