| Place of Origin | China |
| 브랜드 이름 | Syscode |
| 인증 | CE |
| Model Number | CO2 |
Automatic Flying Laser Coder - Continuous Printing for Water Bottles/Oil Drums—————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

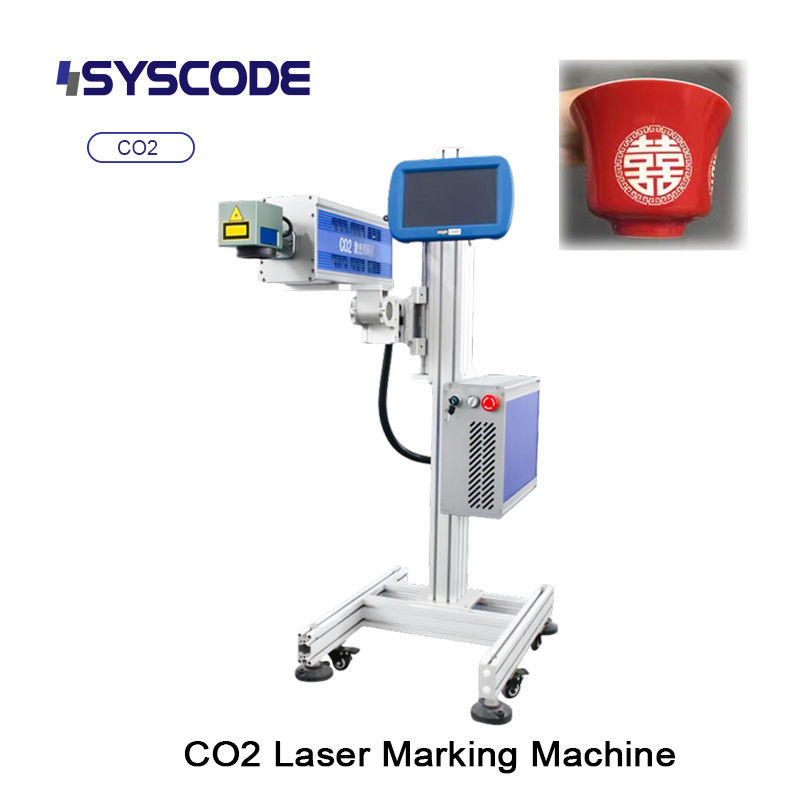

The CO2 laser marking machine is a high-performance industrial marking system utilizing 10.2μm mid-infrared wavelength laser technology. Featuring an all-aluminum construction and user-friendly interface, this advanced equipment delivers precise, permanent marking on various materials with exceptional clarity.
High Power Output: ≥30W laser power ensures fast, clear marking on diverse materials
Optimal Wavelength: 10.2μm mid-infrared wavelength specially optimized for non-metal material absorption
Rapid Marking: Maximum marking speed up to 10,000mm/s significantly improves production efficiency
Industrial-Grade Motherboard: Highly integrated single-board system ensures stable operation
Intelligent Cooling: Air cooling system requires no compressed air, reducing operational costs
Data Protection: Power failure protection prevents accidental data loss
360° Rotatable Scan Head: Accommodates marking at various angles
10-inch Touchscreen: Intuitive interface simplifies operation
Online Editing: Supports content modification without stopping production
| Category | Specifications |
|---|---|
| Basic Parameters | All-aluminum structure, 700W power consumption, IP54 protection rating |
| Laser Performance | 10.2μm wavelength, ≥30W power, ≤10,000mm/s marking speed |
| Operation System | 10-inch touchscreen, Linux OS, USB/SD card interfaces |
| Environment | Operating temperature 5-35℃, humidity 10%-85% (non-condensing) |
| Marking Capability | Max area 400×400mm, minimum line width 0.03mm, repeat accuracy 0.01mm |
The CO2 laser marking machine serves multiple industries with excellent performance:
Packaging Industry: Food, beverage, alcohol, pharmaceutical, and daily chemical product packaging
Material Processing: Precise marking on PET, acrylic, glass, leather, plastic, fabric, rubber, etc.
Special Applications: Exceptional performance on laminated materials like water bottles, oil containers, and food packaging
Q1: What materials are suitable for CO2 laser marking?
A: Ideal for non-metallic materials including plastics, glass, leather, fabrics, and cardboard, especially effective on laminated surfaces.
Q2: Does the equipment require special cooling?
A: Features an air cooling system that requires no compressed air, ensuring low maintenance costs.
Q3: What is the marking precision?
A: Achieves 0.03mm minimum line width with 0.01mm repeat positioning accuracy for high-precision marking.
Q4: Can it adapt to high-speed production lines?
A: Supports production line speeds of 0-280m/min (depending on material and content), suitable for rapid manufacturing environments.
Q5: What is the equipment protection rating?
A: IP54 rating provides effective protection against dust and water splashes.
High Efficiency: Rapid marking capability dramatically improves productivity
Cost-Effective: High electro-optical conversion efficiency and air cooling reduce operational expenses
User-Friendly: Intuitive touchscreen interface simplifies operation
Versatile: Supports multiple file formats and variable text marking
Eco-Friendly: Produces no chemical pollutants during marking process
This CO2 laser marking machine represents the ideal industrial marking solution, delivering reliable performance for both small-scale customization and mass production. Its extensive application range and superior marking quality make it a powerful tool for enhancing product value and brand image.
